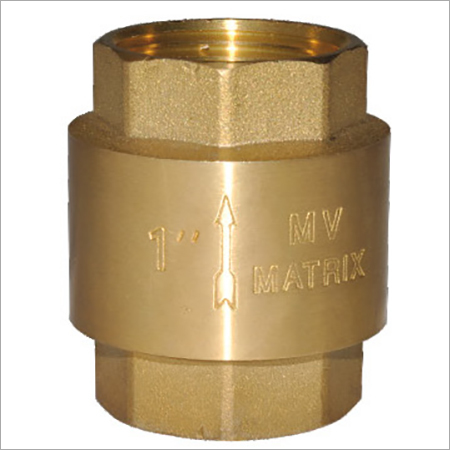

Vertical Brass Check Valve

Vertical Brass Check Valve
Vertical Brass Check Valve
Product Code : MV-111
Brand Name : MATRIX VALVES
Product Description

Vertical Brass Check Valve

Salient Features :

  • Screwed Female ends
  • Single piece design
  • Used for vertical lines only
  • Permits flow in one direction and shuts automatically if the flow reverses
  • Spring inside

Dimensions:- (All Dimension are in mm)

SIZE

DN

A

A/F

ØI

G

H

L

A/C

1/2″

15

11.5

24

Ø18.0

1/2″

Ø33.3

45.0

Ø25.5

3/4″

20

13.5

30

Ø20.5

3/4″

Ø35.0

51.3

Ø31.5

1″

25

15.5

35.5

Ø28.0

1″

Ø44.0

56.0

Ø37.7

1.1/4″

32

16.5

46.5

Ø35.8

1.1/4″

Ø56.3

67.0

Ø49.5

1.1/2″

40

17.5

53.5

Ø41.3

1.1/2″

Ø65.3

74.0

Ø57.3

2″

50

17.5

65.0

Ø53.0

2″

Ø80.0

79.5

Ø69.7

Size Range from : ½” (15 mm) to 2″ (50 mm)
